Environmental Stress Screening

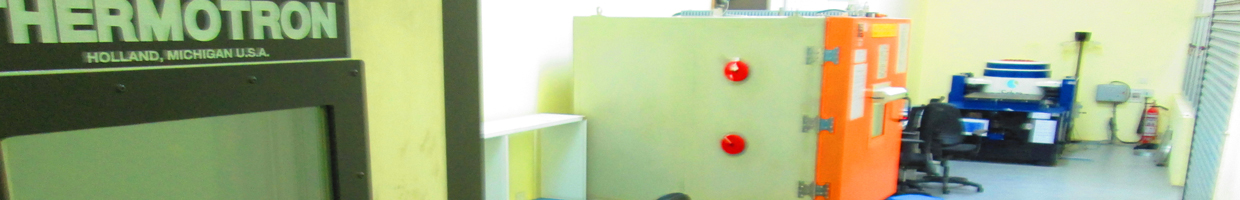

Halbit Environmental Stress Screening (ESS) Lab houses climatic chambers and electronic dynamic vibration shakers. The ESS and COTS screening which is core to acceptance of avionics equipment are being carried out at the lab.

Halbit LMS
High Temperature chamber
Test Range Work space dimension: 800(L) x 950(W) x 800(H) mm
Temperature range: Ambient to 100 °C
Temperature Tolerance: ± 1 °C
Ramp rate: 5 °C (Approx.)
Test Capability > High Temperature (Storage)
> Thermal Shock (02 chamber method in conjunction with Thermotron chamber)
> Burn-in
Halbit LMS
Thermal chamber
Test Range Work space dimension: 810(w) x 670(d) x 710(h) mm
Temperature range: -70 °C to 180 °C
Temperature consistency: ± 0.5 °C
Ramp rate: 15 °C/min
Test Capability > High Temperature (Operational)
> Low Temperature (Operational)
> High Temperature (Storage)
> Low Temperature (Storage)
> Thermal cycling
Halbit LMS
Electro-dynamic vibration shaker
Test Range Frequency range: 5 to 2400 Hz
Displacement: 51 mm Peak to Peak
Load capacity: 250 Kgs
Max acceleration: 100g
Force rating: 3500 Kgf
Armature Diameter: 360 mm
Horizontal Slip Table : 800 X 800 mm
Test Capability > Sweep Sine
> Random
> Transit Shock
> Sine on random
> Random on random

Please contact Esslab@halbit.co.in for any enquiries and the Test requirement.
